Portfolio
Engineered solutionsfor demandingenvironments.
Coverage is selected against the volume and geometry of the space. Two platforms, nine configurations, one response time.

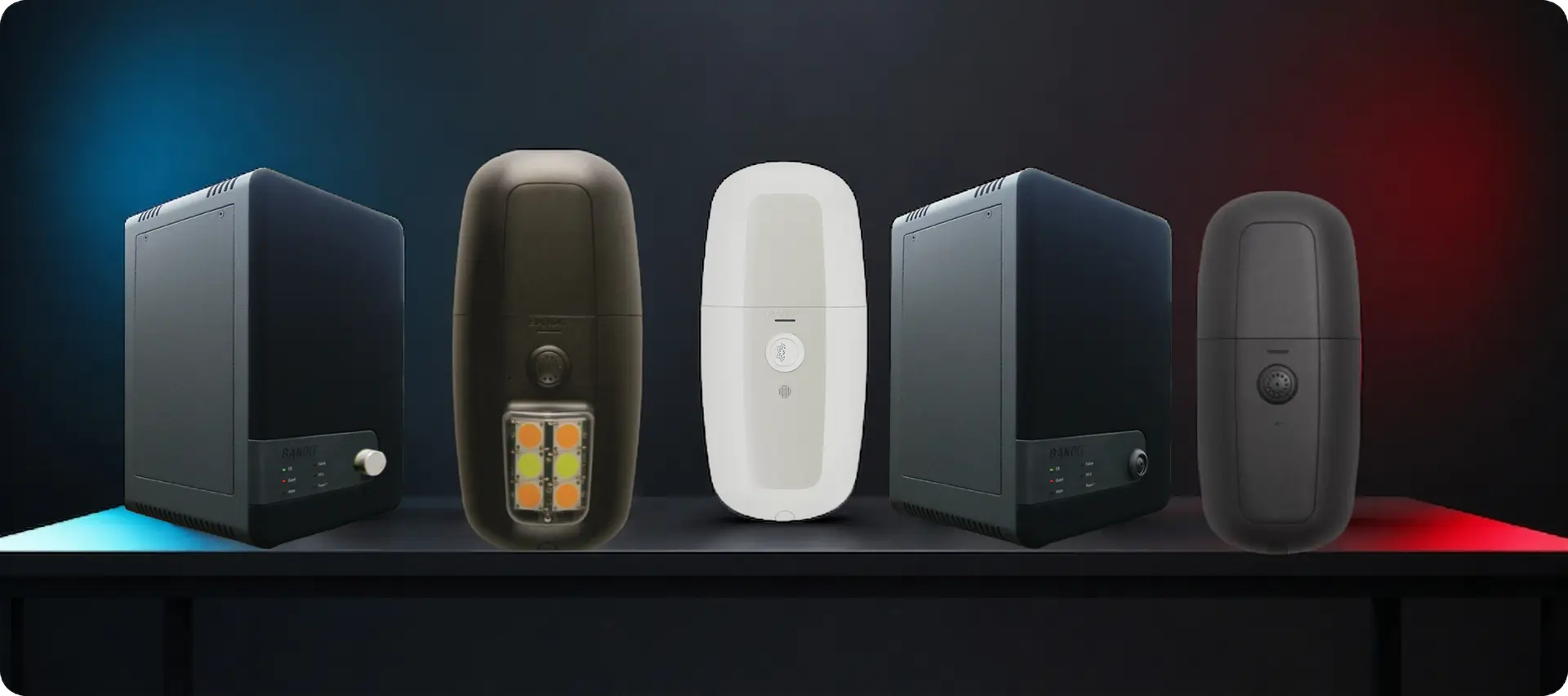

Platforms
Bandit 240 DB
50 – 600 m³The high-capacity platform. Programmable across a wide volume band, with nozzle configurations for open rooms, corridors and high-ceiling spaces.
Small to large spaces, narrow spaces, high-ceiling spaces and hidden installations
Bandit 320
40 – 200 m³The compact, cartridge-based platform. Dustproof and maintenance-free, mountable in any orientation and installable entirely out of sight.
Small to medium spaces, narrow spaces, high-ceiling spaces, split spaces and hidden installations
Accessories
—Components that extend a Fog Bandit installation, including pulsed-LED flash deterrence.
Pairs with both the 240 and 320 platforms
Multi-unit arrays can be configured for larger volumes such as stadiums, transport terminals and extreme-scale logistics hubs. Configurations of that kind are designed against the individual site rather than selected from a catalogue — speak to a consultant.
Product portfolio
Bandit 240 DB
240 DB — Standard Tri Nozzle
Designed as a general-purpose unit
The general-purpose unit of the range and the most widely deployed. Three nozzles distribute dense fog across an entire room in seconds, programmable across a wide volume band.
- Produces 28 cubic metres of fog per second, reducing visibility to roughly 25 cm
- Programmable for room sizes ranging from 50 m³ to 600 m³
- 24/7 self-diagnostics instantly report status changes to the alarm panel
- Error LED provides quick identification of a fault for rapid resolution
- The most widely specified unit for rapid protection of entire rooms
Certification
Specified, tested,
certified.
Fog Bandit systems are independently certified, which matters when a security control has to be demonstrated to an insurer, an auditor or a licensing authority rather than simply described.
EN 50131-8
European Standard — Security fog devices
Bandit 240 and 320 systems are verified to fully comply.
NF & A2P
French certification
The highest security grade certificate, awarded in France.
ISO 9001
Quality management systems
CNPP
French certification and testing body
CE
European Conformity
Declared by Bandit NV against the EMC and Low Voltage Directives.
Documentation
The documents a procurement, insurance or HSE reviewer will ask for. Registered partners download them from the partner portal; if you are reviewing a proposal and need a copy, ask us and we will send it.
- Applica Test & Certification ASBandit 240 DB v3 — EN 50131-8 certificateCertificate of Conformity 31767-01-25-INT, attesting the Bandit 240 DB v3 security fog device to EN 50131-8:2019.Valid until 2029-05-12
- Applica Test & Certification ASBandit 320 with CF31 V2 — EN 50131-8 certificateCertificate of Conformity 31949-01-26-INT, attesting the Bandit 320 security fog device and CF31 V2 controller to EN 50131-8:2019.Valid until 2030-03-02
- AFNOR Certification / CNPPNF & A2P certificateCertification against NF 324 – H 58 and the A2P general rules, covering the security fog device.Valid until 2026-10-03
- SGS Belgium NVISO 9001:2015 certificateCertificate BE10/23574209 for Bandit NV, covering development, production and maintenance of active security products. Certified without a break since 2010.Valid until 2028-12-02
- Bandit NVEC Declaration of ConformityManufacturer declaration for the Bandit 240 and Bandit 320 against the EMC and Low Voltage Directives.No expiry
- Bandit NVHY-3 fog fluid safety data sheetFull composition, handling and hazard information for the fog fluid. The document HSE and facilities teams usually ask for first.No expiry
Technical specification
The numbers, in
full.
Manufacturer figures for the Bandit 240 platform. Everything a facilities, HSE or procurement reviewer needs to judge whether the unit suits a given room, supply and mounting position.
Performance
- Reaction time
- 0.1 s between alarm signal and fog ejection
- Fog ejection capacity
- 28 m³ of space filled per second, to 25 cm eye-to-object visibility
- Fog ejection pressure
- 16 BAR (1.6 MPa)
- Maximum ejection period
- 18 seconds
- Ejection pattern
- /R60 60° standard, or /R0 straight ahead
- Nominal droplet size
- 0.0004 mm (full aerosol)
- Warm-up from cold
- 50 minutes
Physical
- Dimensions
- 270 mm W × 365 mm H × 255 mm D
- Weight
- 28 kg
- Construction
- Stainless steel 304L and aluminium AlMgS1
- Protection index
- IP21 / IK08
- Environmental class
- Class II
- Operating temperature
- 0 °C to 50 °C
- Maximum heat loss
- 40 W/hour
Electrical
- Mains supply
- 208 – 240 VAC
- Frequency
- 50 – 60 Hz
- Mains failure endurance
- Fog generator +2 hours, electronics +24 hours
HY-3 fog cartridge
- Fluid contents
- 1.4 litre
- Nominal working pressure
- 16 BAR (1.6 MPa)
- Weight
- 6 kg
- Ejections per cartridge
- Adjustable, 3 to 27 before replacement
- On-board electronics
- Digital temperature sensor, E²PROM level memory, tamper switch and control LED, propellant-expulsion security, 12 V NC valve
Components & order codes
Mounting, control, deterrence and consumables, with the manufacturer’s order codes — quote against these directly.
Mounting
- Bandit 240 swivel wall bracket240 06 004
- Bandit 240 flat wall bracket240 06 002
- Bandit 240 ceiling mount240 06 008
- Bandit 240 floor mount240 06 006
- Bandit Handy-boy installation aid240 06 020
- Front fascias for Bandit 320 V / H / C / S320 04 001
Control
- Bandit control box with 10 m cable240 04 001
- Bandit controller CF31320 02 001
- Bandit 320 controller CF21 v2320 02 002
- 12 V supply enclosure with controller CF31-v2 and battery320 02 902
- Bandit panic button with check button, 10 m cable320 06 001
- Bandit CPT remote240 03 891
- Bandit LED receiver with remote320 06 002
- Bandit backup battery, 12 V 2.2 Ah240 06 BBB
Deterrence
- Bandit flash LED with 10 m cable, arm/disarm indication240 06 LED
- Bandit 320 V LED flash kit320 01 008
- Standalone flash kit 903320 02 903
- Standalone flash kit 930320 02 930
Consumables
- Bandit HY-3 fog fluid cartridge replacement pack240 02 901
- Bandit 320 fog fluid cartridge-8, 180–200 m³ coverage320 03 008
- Bandit 320 fog fluid test cartridge, 40–60 m³ coverage320 03 000
- Bandit 240 HY-3 replacement tool240 06 TOL
Specification support
Not sure which platform fits?
Send us the room volume, ceiling height and mounting constraints and we will specify against them. There are 9 configurations in the range — the right one depends on the space.
